WIN Semiconductors foundry logo

Foundry profile

WIN SemiconductorsFoundry profile · process nodes · MPW shuttle windows · tape-out access

WIN Semiconductors is the world's largest pure-play compound semiconductor foundry, offering GaAs and GaN HEMT MPW programs for RF and high-frequency applications. TOMPW Service supports WIN compound-semiconductor MPW access.

Reviewed October 29, 20264 process nodes listed: 0.10µm GaAs pHEMT, 0.15µm GaAs, 0.10µm GaN HEMT and moreScope: MPW, NTO and production evaluation

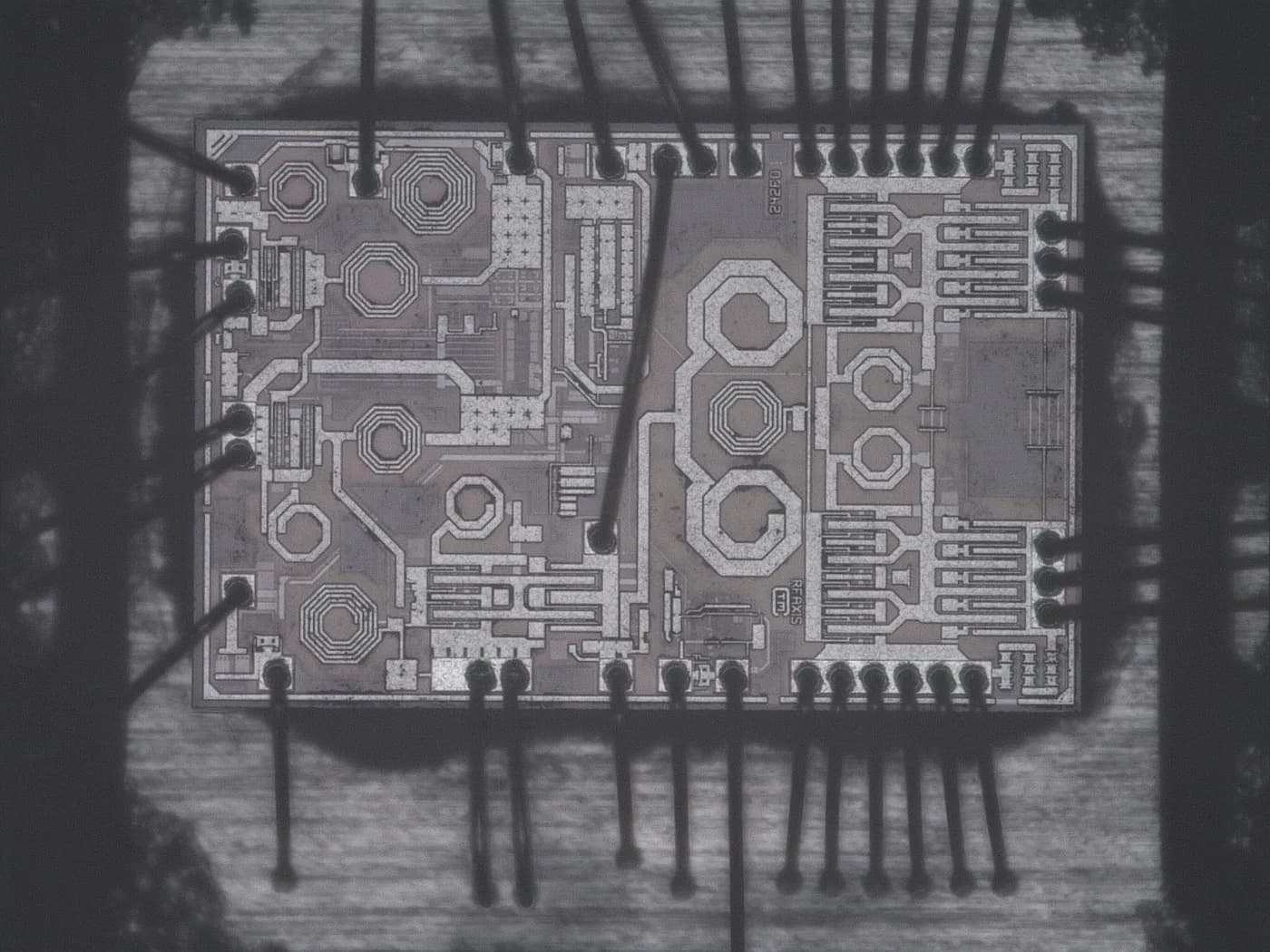

WIN Semiconductors — representative silicon and device imagery from programs we support

Representative imagery from semiconductor programs we have supported or analysed

Process Nodes

0.10µm GaAs pHEMT0.15µm GaAs0.10µm GaN HEMT0.15µm GaN

Technologies & Platforms

GaAs pHEMT
GaN HEMT
Compound Semiconductor
RF / mmWave

TOMPW Support Capabilities

✓GaAs and GaN MPW shuttles
✓RF and mmWave process support
✓Compound-semiconductor packaging coordination
✓High-frequency device fabrication

Best For

RF and mmWave front-ends5G and wireless infrastructurePower amplifiers and RF devicesHigh-frequency applications

Notes

  • WIN runs regular GaAs/GaN MPW shuttles (e.g. NP12, PIN, PP series) through the year.
  • TOMPW can coordinate compound-semiconductor MPW and downstream test.

Plan the manufacturing route

Compare the process requirements with the package and test path before selecting a manufacturing route. Confirm the PDK, supplier acceptance, commercial terms and delivery scope in the project proposal.

Discuss WIN Semiconductors for Your Program

Share the application, process requirements and target quantities. TOMPW will review feasibility and identify the access, package and test conditions to confirm for WIN Semiconductors.

Email for a Quote

COMMON QUESTIONS

Planning a WIN Semiconductors project

Can TOMPW arrange MPW or shuttle runs at WIN Semiconductors?

TOMPW reviews MPW, NTO and full-mask options for WIN Semiconductors projects. Process acceptance, PDK access, run availability, quantities and delivery dates are confirmed for the specific project before booking.

What support does TOMPW provide beyond the wafer at WIN Semiconductors?

TOMPW can scope packaging, final test, PCB and assembly work alongside the wafer requirements. The package route, responsible suppliers, test coverage and acceptance criteria are agreed in the project proposal.

How do I get a quote for a WIN Semiconductors engagement?

Email market@tompwservice.com with the application, target process, program stage, volume and package or test needs. Start with non-confidential requirements; design files can follow through an agreed secure handoff.

RELATED FOUNDRY PROFILES

Other foundries teams compare WIN Semiconductors with

RELATED SERVICES

Services that pair with a WIN Semiconductors engagement

MPW / SHUTTLE ACCESS

Plan a WIN Semiconductors MPW by process node

TOMPW coordinates multi-project wafer runs at WIN Semiconductors across the nodes below. Open a node to see typical applications, what the run involves and how to book a shuttle slot.

MPW SHUTTLE PLAN

Shuttle windows at WIN Semiconductors by process node

The months below mark where a window commonly opens on each platform. A run launches once it fills, so read this as planning rhythm rather than a bookable date — send TOMPW your node and target quarter and we will tell you which run you can actually join.

NP12-1B (GaAs)

janfebmaraprmayjunjulaugsepoctnovdec

PIN1-11 (GaAs)

janfebmaraprmayjunjulaugsepoctnovdec

PP10-29 (GaN)

janfebmaraprmayjunjulaugsepoctnovdec
